C1010
Hongri Electronics is committed to the research, development, production, and sales of high-quality LEDs, and has established the RITTER brand spe- cifically for UVLEDs.
C1010
- Product Detail
-
- Commodity name: C1010
COB 1010 series are a kind of high radiation power UVLED with 36 pcs 45 mil chips, using 0.5mm thick ALN substrate. The peak wavelength ranges from 400nm to 410nm.
NO. SIZE(mm) Chip Connection Arrangement Wavelength(nm) Typical Input Current Typical Input Voltage Typical Peak Radiant Flux (@4.2A) 1010 10.5mm*10.5mm*1.71mm 6S6P 400nm~410nm 4.2A 19V~23V 38W Characteristics
Absolute Maximum Ratings
Parameter Rating Maximum DC Forward Current 6A LED Junction Temperature 130℃ Operating Temperature -30℃~85℃ Storage Temperature -40℃~100℃ General Characteristics
Parameter Rating Dimensions 10.5mm*10.5mm*1.71mm Chip Connection Arrangement 6S6P Emitting Area Size 8.8mm*8.84mm Typical Peak Wavelength 400nm~410nm Typical Input Current 4.2A Typical Input Voltage 19V~23V Typical Peak Radiant Flux (@4.2A) 38w Connector type Solder Pad Dimensions
Top view
Side view
Recommend Solder Pad (mm)
Notes :
1. Drawings are not to scale
2.All dimensions are in millimeter
3.Dimensions are ±0.10mm unless otherwise indicated

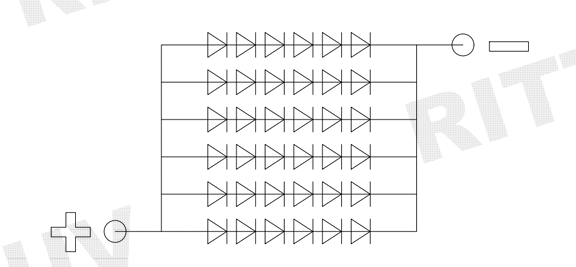

Electrical Connector
Ritter Electronics is committed to high-quality LED R&D, production and sales. Since 2011, the company has focused on UVLED development for special applications. The Ritter brand was created for UVLED. Now Ritter UVLED has formed a full-process solution from basic components to complete plant applications. Leading in high-power UVLED packaging technology, especially in matrix module packages. Using proprietary technology, on the basis of fully solving the heat dissipation, the quartz lens is integrated with light distribution, which can provide a variety of light-emitting angles and give full play to the light-emitting effect of the chip. It has been widely used in special industrial fields such as glue, ink, paint, exposure, etc.
