C1919-B（10S10P-405NM)
Hongri Electronics is committed to the research, development, production, and sales of high-quality LEDs, and has established the RITTER brand spe- cifically for UVLEDs.
C1919
- Product Detail
-
- Commodity name: C1919-B（10S10P-405NM)
COB 1919-B series are a kind of high radiation power UVLED with 100 pcs 45 mil chips,using1.71mm thick ALN substrate. The peak wavelength ranges from 400nm to 410nm.
NO. SIZE(mm) Chip Connection Arrangement Wavelength(nm) Typical Input Current Typical Input Voltage Typical Peak Radiant Flux (@4.2A) 1919 19.2mm*19.2mm*1.71mm 10P10S 380nm~390nm 7A 33V~40V 250W Characteristics
Absolute Maximum Ratings
Parameter Rating Maximum DC Forward Current 10A LED Junction Temperature 130℃ Operating Temperature -30℃~85℃ Storage Temperature -40℃~100℃ General Characteristics
Parameter Rating Dimensions 19.2mm*19.2mm*1.71mm Chip Connection Arrangement 10P10S Emitting Area Size 17.2mm*17.2mm Typical Peak Wavelength 400nm~410nm Typical Input Current 7.0A Typical Input Voltage 33V~40V Typical Peak Radiant Flux (@7.0A) 250w Connector type Solder Pad Dimensions
Top view
Side view
Recommend Solder Pad (mm)
Notes:
1.Drawings are not to scale
2.All dimensions are in millimeter
3.Dimensions are ±0.10mm unless otherwise indicated

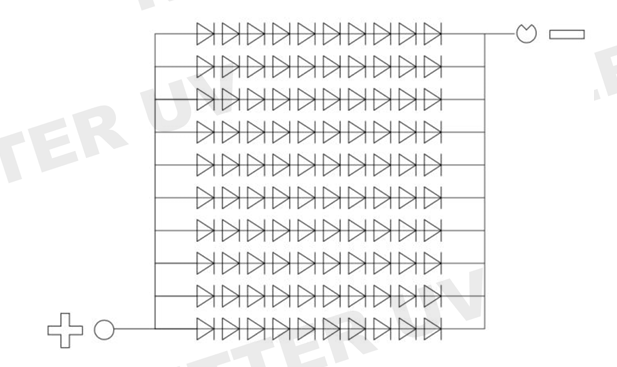

Electrical Connector
Ritter Electronics is committed to high-quality LED R&D, production and sales. Since 2011, the company has focused on UVLED development for special applications. The Ritter brand was created for UVLED. Now Ritter UVLED has formed a full-process solution from basic components to complete plant applications. Leading in high-power UVLED packaging technology, especially in matrix module packages. Using proprietary technology, on the basis of fully solving the heat dissipation, the quartz lens is integrated with light distribution, which can provide a variety of light-emitting angles and give full play to the light-emitting effect of the chip. It has been widely used in special industrial fields such as glue, ink, paint, exposure, etc.
